The ‘CIGAR’ (Compact Idiosyncratic Gapped Alignment Report) string is how the SAM/BAM format represents alignments.
Understanding the different CIGAR strings (eg: “6M”, “3M2I3M”, in the examples below) will help you to understand how the query (or “read”) sequence aligns to the reference genome.

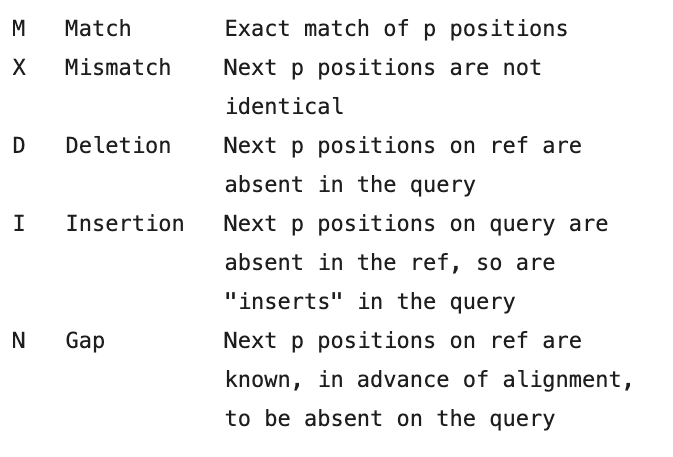

CIGAR strings have several operators, each preceded by a number, p the number of aligned nucleotides
The position stored is the left-most coordinate of the aligned query to the genomic reference-position. To determine the final coordinate of the aligned query, you have to parse the CIGAR string.
Here are five different concrete examples:
First example: The shown alignment will give position = 2 (0-based!) and CIGAR = 6M
This means there are 6 exact matches to the reference. So if we are starting at position=2, with 6 exact matches, we end at reference-position 7 (again 0-based)
Second example: The shown alignment, will give position=2 (0-based) and CIGAR=3M2I3M:
Here, two nucleotides (‘GA’) are inserted into the query. So if we are starting at position=2, based on the CIGAR string, we have 3 exact matches, 2 insertions, then 3 more exact matches, resulting in an end reference-position of 9.
Third example: The shown alignment will give position=2 and CIGAR=1M2X3M:
Here, two nucleotides (‘AA’) replace the original two (‘TC’) of the first example and do not match the reference. So if we are starting at position=2, based on the CIGAR string, we have 1 exact match, 2 mismatches (or substitutions), then 3 more exact matches, resulting in an end genomic-position of 7.
Fourth example: The shown alignment will give position=2 and CIGAR=2M1D3M:
Note there is a deletion on the query. The ‘C’ in the reference sequence has no match. So if we are starting at position=2, based on the CIGAR string, we have 2 exact matches, 1 deletion, then 3 more exact matches, resulting in an end position of 7 relative to the reference.
Fifth example: The shown alignment will give position=3 and CIGAR=3M7N4M:
This is a gapped alignment (due to a splicing event in RNAseq). So if we are starting at position=3, based on the CIGAR string, we have 3 exact matches, 7 gaps*, then 4 more exact matches, resulting in an end position of 16.
*While equivalent to a deletion, a gap, N is reserved for nucleotides known in the reference that are absent in the query due to a splicing event. In other words: when aligning the intron sequence of the reference to the spliced query.
The “delins” concept
A delins is simply described as a combination of a deletion and insertion at a given locus. When explaining this same concept applied to SPDI annotation, NCBI states:
To clarify, using the term “deleted sequence” does not imply that someone is asserting that the mechanism behind the variant was a deletion then an insertion. It only specifies that the same variant sequence would be observed, if this deletion followed by this insertion was applied to the reference sequence.”
A delins variant definition will appear in a CIGAR string as a deletion, followed by an insertion eg, the 8D4I here:
>frg400 15M8D4I7M1X7M2X5M1X158M
CATTGGAACAGAAAGagatTTATCTGtTGTTTGCagTGAAGgAGTACAAAATG
The reverse-complement of this sequence, and its corresponding CIGAR, looks like this:
>frg800 158M1X5M2X7M1X7M8D4I15M
CATTTTGTACTcCTTCActGCAAACAaCAGATAAatctCTTTCTGTTCCAATG
The delins sub-CIGAR 8D4I reads the same in both directions. The starting point refers to the last nucleotide before the insertion, so a mapped starting point will differ for all cases apart from 1DnI, where ‘n’ means any number.
